Claber Hydro-4

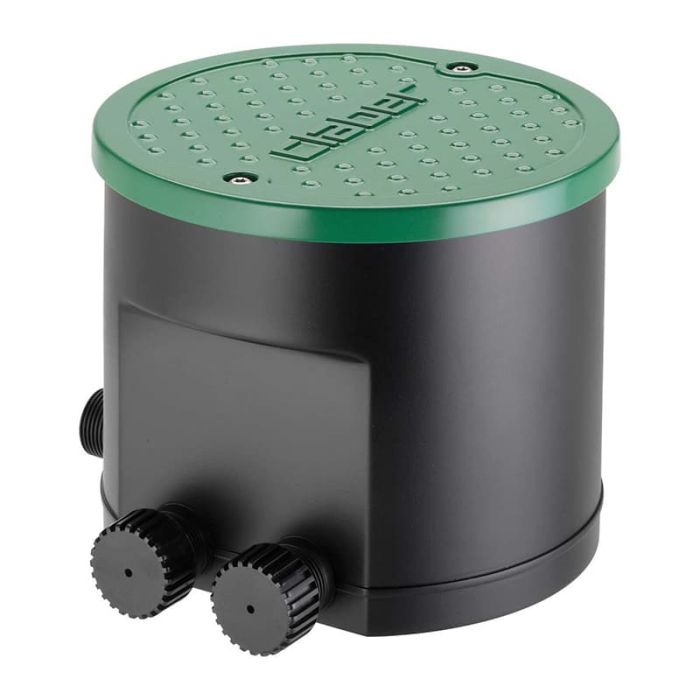

A practical, ready-to-use solution to manage irrigating the most common gardens (up to about 700 sq.m.). Hydro-4 is a valve box with IP68 rating, containing a battery water timer and 4 solenoid valves.
Preassembled valve box incorporating 4 solenoid and a timer. Power provided by two 1.5 V AAA batteries, enough to last an entire season. On/off control for up to 4 independent underground or drip irrigation lines.
Easy programming procedure, using just 3 buttons and a large size display. Watering time 1 to 60 minutes. 2 programs for each outlet, up to 8 watering cycles per day. Weekly setting, allowing exclusion of single days. Manual test of 5 minutes duration, variable in the same way as for watering times.
A perfectly sealed IP 68 unit. Protective cover and buttons in bi-material rubber. Facility of viewing and deleting programs entered for each line. 3/4” M (20-27 mm) connections on both inlet and outlet sides.
Wireless connection to radio frequency Rain Sensor. 5 threaded caps provided for unused outlets. 4 solenoids valves. Watering line flow rates: 25 l/min at 2,5 bar. Operating pressure: min 1 - max 6 bar. Operating temperature: 3 - 60 °C. Dimensions: diameter 200 - height 153 mm.
- Compact and ready to use
- IP68 protection: the maximum against water, moisture and dust
- Independent from electricity network
- Connectable to radio-operated rain sensor
Dimensions
- Width: 207mm
- Height: 153mm
- Depth: 207mm
- Weight: 2000g
Materials
- Body: PA6
- Cover lid: PA6
Technical Specifications
- Inlet thread: 3/4"
- Outlet thread: 3/4"
- Working pressure: 1 - 6 bar
- Outlets: 4
- Programmes: 2
- Type of programmes: customizable
- Max. frequency of watering cycles: 8 per day
- Min. watering duration: 00:01′
- Max. watering duration: 01:00′
- Water flow: 25 l/min at a pressure of 2.5 Bar
- Rain sensor: radio frequency
- Powered by: 2 x AAA
- Warranty (years): 2
| Brand | Claber |
|---|---|
| Color | Black |
| Pack Quantity | 1 |
